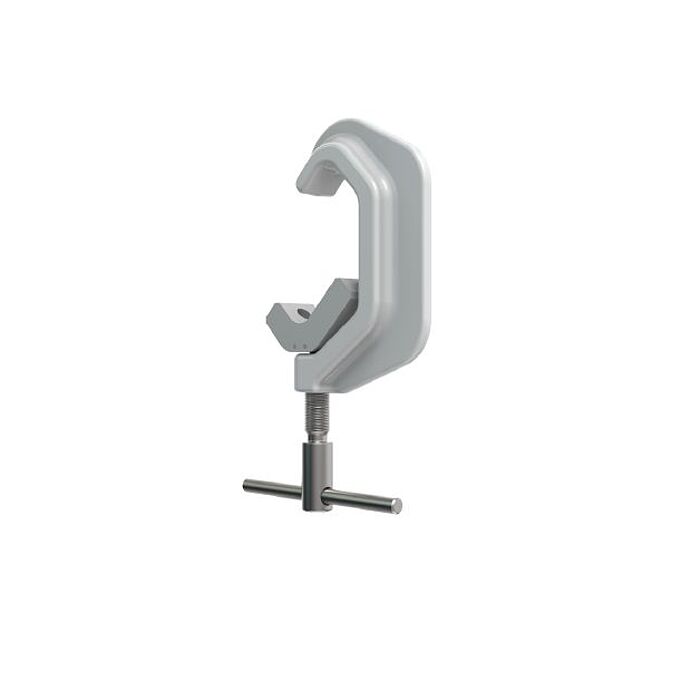

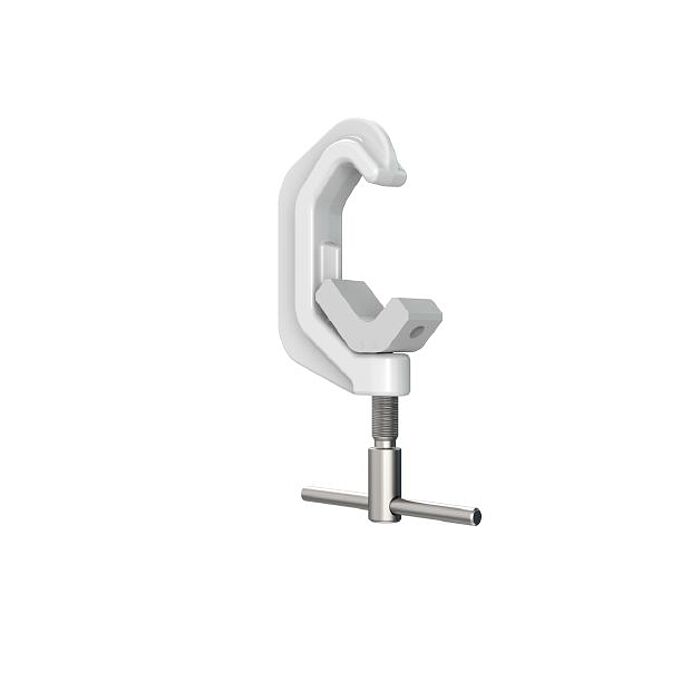

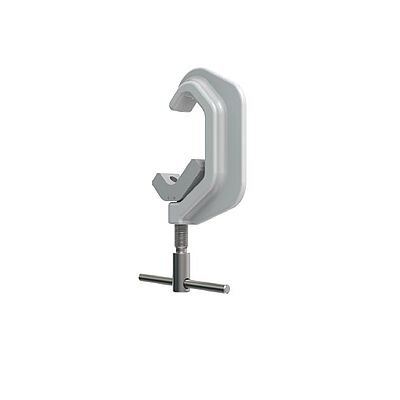

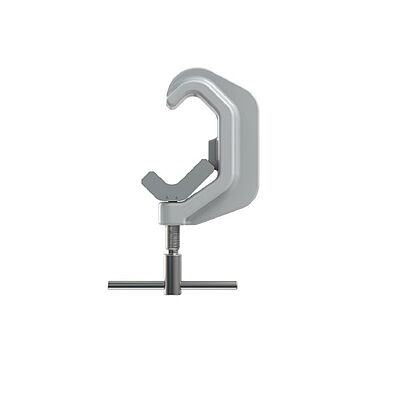

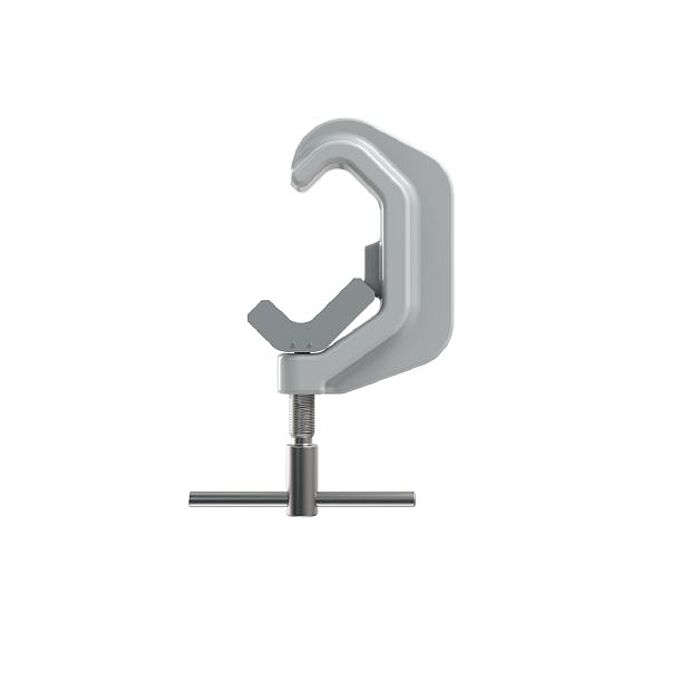

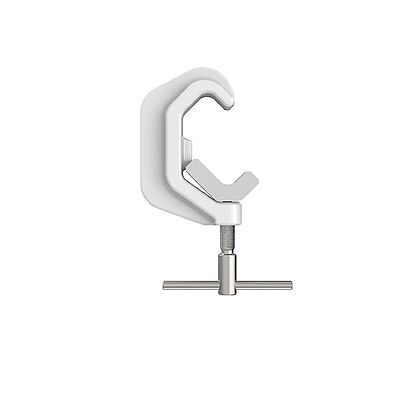

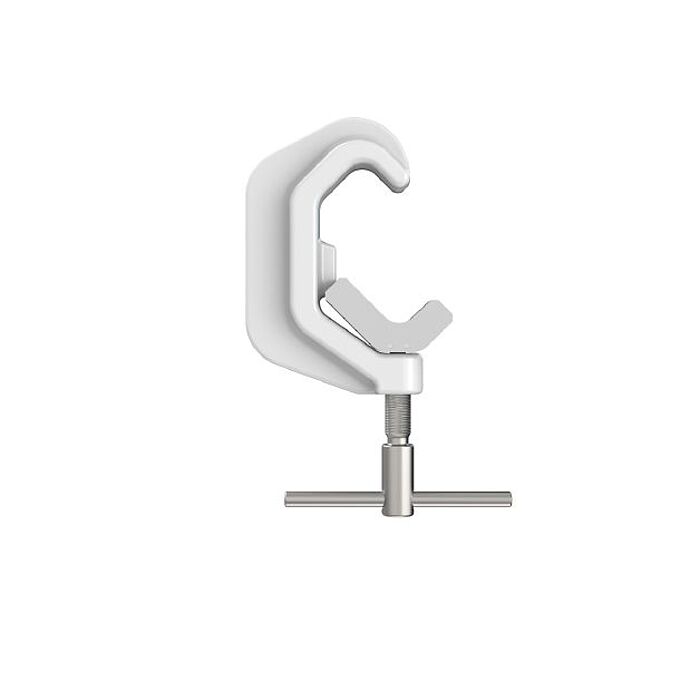

Railhead Clamp R52

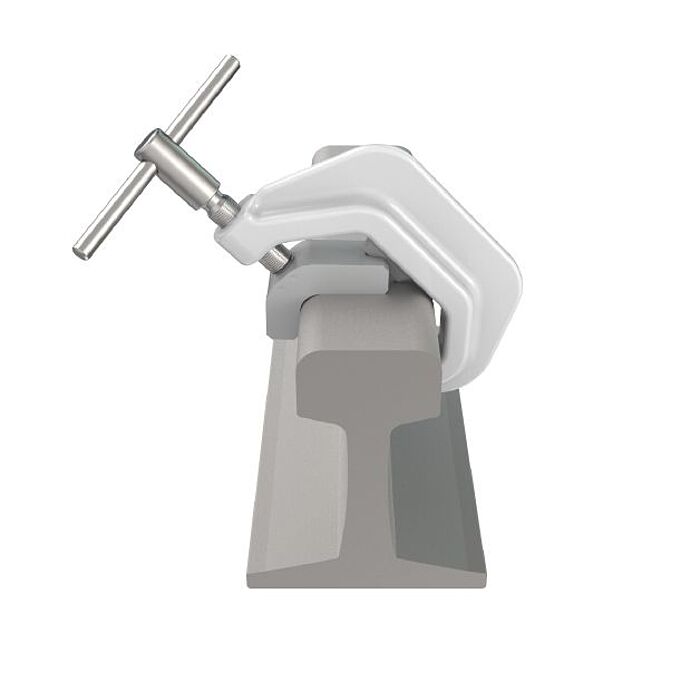

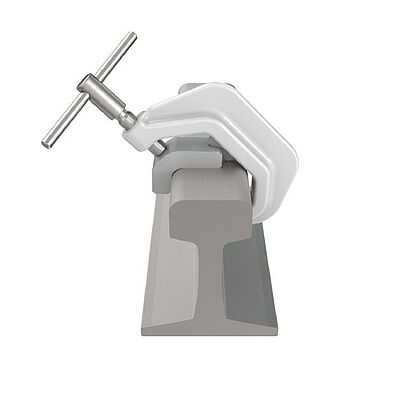

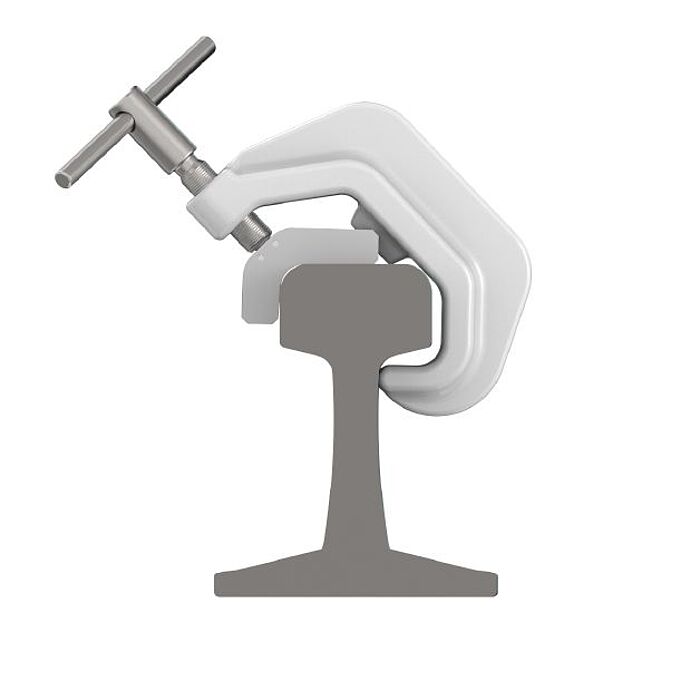

This railhead clamp can be used for rail profiles 46E1/54E2/60E2. The universal design allows the railhead clamp to be attached flexibly and easily to the railhead profile.
Material:- Clamp made of aluminum alloy
- Spindle made of stainless steel A2
- Connection screw made of stainless steel A2
Technical Data
| Article no. | 363 322 010 | |
|---|---|---|
| Area of application | Railway Application | |
| Type | R52 | |
| Max. cross section of connected cable | (mm2) | 70 |
| Max. short-circuit current | IK 0,10s (kA) | 40 |
| Weight | (g) | 1100 |
Downloads
Data sheet as pdf-fileDrawing as pdf-file
