Conductor cross section area … 10 - 95 1000 - 1200 16 - 150 185 - 400 + 500 RE Al/Cu 240 - 500 25 - 95 300 - 630 + 800 RE Al/Cu 300 - 630 / 95 - 300 50 - 240 50 - 240 / 10 - 95 50 - 240 / 16 - 150 50 - 300 630 - 800 + 1000 RE Al/Cu 800 - 1000 800 - 1000 + 1200 RE Al/Cu 95 - 300 + 400 RE Al/Cu

External diameter … 24 28 33 35 38 42 50 52 60 65 72

Internal diameter … 13 16,5 20 20 / 16,5 21 21 / 13 22 24 26,4 31 33,5 33,5 / 24 38 41 42 45,5

Total length … 55.0 82.0 85.0 108.0 120.0 128.0 165.0 166.0 190.0 200.0 230.0 235.0 280.0

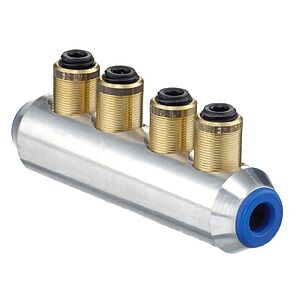

SICON Bolted Connectors

	Article no.	Designation	Conductor cross section area (mm2)	External diameter (mm)	Quantity of mounting holes	Diameter of the mounting holes (mm)
	332 601 012		10 - 95	24
	332 593 012		16 - 150	28
	332 601 122		25 - 95	24
	332 592 012		50 - 240	33
	332 614 012		50 - 240	35
	332 632 012		50 - 300	35
	332 602 012		95 - 300 + 400 RE Al/Cu	38
	332 617 012		185 - 400 + 500 RE Al/Cu	42
	332 640 012		240 - 500	50
	332 603 012		300 - 630 + 800 RE Al/Cu	52
	332 597 075		630 - 800 + 1000 RE Al/Cu	60
	332 645 022 00001		800 - 1000	65
	332 645 012 00001		800 - 1000 + 1200 RE Al/Cu	65
	332 620 117 00001		1000 - 1200	72
	332 646 012		50 - 240 / 10 - 95	35
	332 646 022		50 - 240 / 16 - 150	33
	332 646 032		300 - 630 / 95 - 300	52
