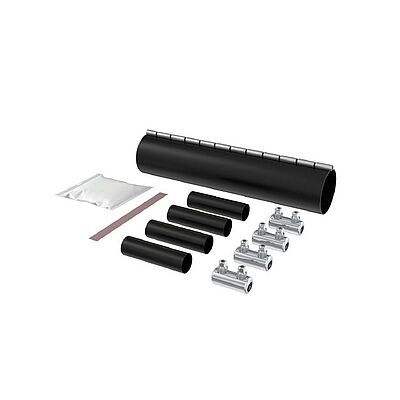

Set: 1 kV Connection Joint with 4 Pieces Bolted Connectors 33280421000001, 4-cores, VPE/PVC 25-95, Repair Sleeve
On the basis of DIN SPEC 47640.
DAS = Diameter, outer tubingDIS = Diameter, inner tubing
LAS = Length, outer tubing
LIS = Length, inner tubing
Technical Data
| Article no. | 333 115 224 | |
|---|---|---|
| Number of conductor | 4 | |
| Number of screw connectors | 4 | |
| Conductor cross section | (mm2) | 25 - 95 |
| No. LV screw connector | 332 804 210 00001 | |
| Shear bolts | yes | |
Dimensions
| Joint outside diameter | DAS Ø (mm) | 93/25 |
|---|---|---|
| Joint inside diameter | DIS Ø mm | 33/8 |
| Joint length | LAS (mm) | 1000 |
| Joint inner length | LIS Ø mm | 190 |
