CONNEX Elbow Joint, Size 5-S, 145 kV
Application

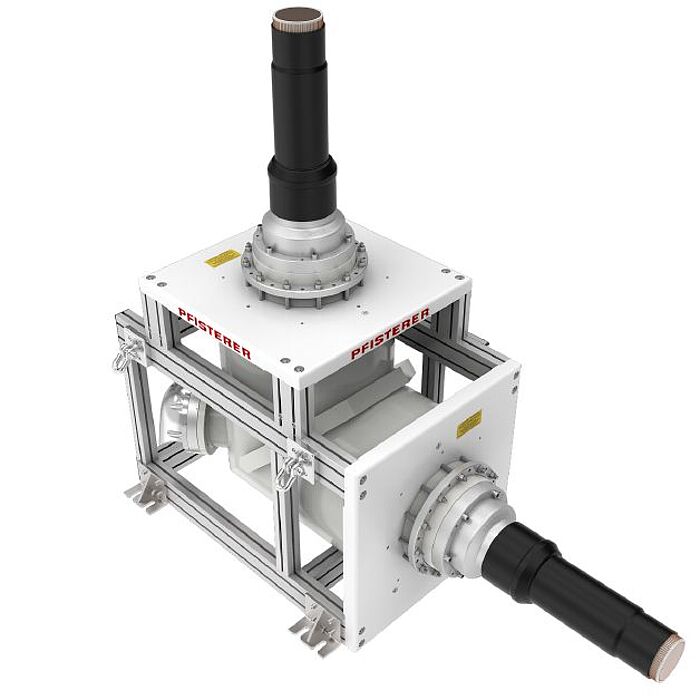

- Pluggable connection of two cable runs arranged at right angle

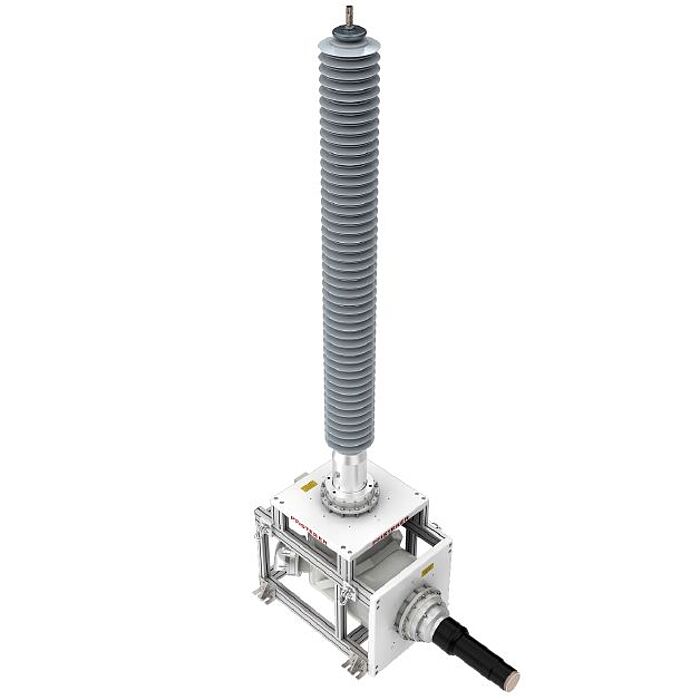

- In combination with CONNEX bushings in vertically suited for temporarily supplying a facility
Features
- Fast installation thanks to preassembly
- Combination of different conductor materials
- Connects a vast range of cable cross-sections
- Different sizes can be combined on request
- Metal clad
- Fully insulated
- High short-circuit strength
- Maintance-free
- Maintenance-free gas density monitor (manometer) with remote monitoring option
- Bursting disc

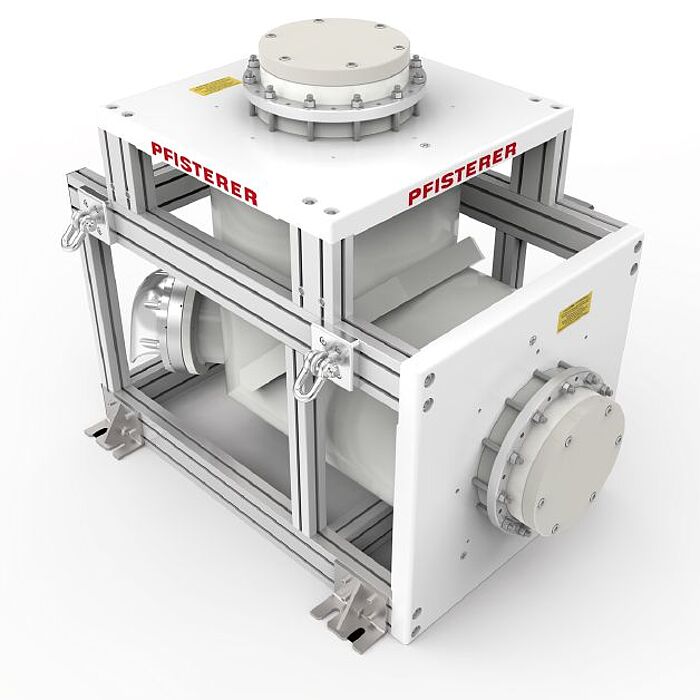

Sockets are sealed with plastic covers. Voltage-proof dummy plugs to be ordered separately.
Technical Data
| Article no. | 827 077 010 | |
|---|---|---|
| Max. system voltage | Um (kV) | 145 |
| Size | 5-S | |
| Design | angled | |
| Insulation medium | gas | |
| Applicable standards | IEC 60840, IEC 60137, IEC 62271-203 | |
| Working place | indoor, outdoor and offshore | |
| Protection Type | IP 67 | |
